船舶用無縫鋼管
Pipe&tube for ship
船規 Classification of ships:
DNV、GL、LR、BV、CCS、KR、NK
鋼級 Grade 標準Standard | 鋼級 Grade | 外徑OD | 壁厚WT | 船級社
Classification of ships | GB/T5312 | 320、360、410、460、490 | 21.3-711mm | 2-60mm | DNV、GL、LR、BV、CCS |
注：經協商，也可供其它規格的鋼管
Note:Other size can also be provided after consuliting with customers

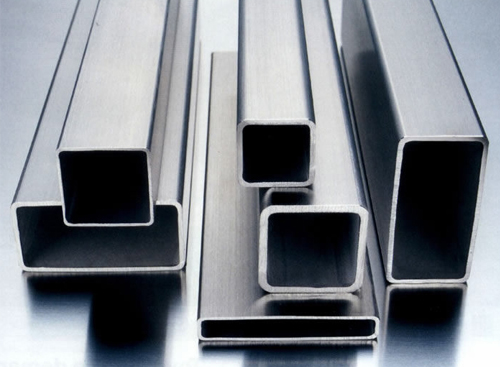

異形鋼管
Cold-drawn shaped steel tubes
標準 Standard：
EN10210 — 非合金及細晶粒結構鋼熱成型結構管（空心材）
GB/T3094-2000—冷拔異型鋼管
鋼級 Grade： 標準Standard | 鋼級 Grade | 方形管 | 矩形管 | 備注Remarks | 邊長 | 壁厚WT | 長邊 | 短邊 | WT壁厚 | EN10210-1 | S235、S275、S355、S420、S460 | 40-400mm | 2.6-20mm | 50-500mm | 30-300mm | 2.6-20mm | | GB/T3094-2000 | 10、20、Q195、Q235B、Q345B、Q345C、 | 20-280mm | 2-20mm | 20-400mm | 10-200mm | 2-20mm | |
注：經協商，也可供其它規格的鋼管
Note:Other size can also be provided after consuliting with customers |
